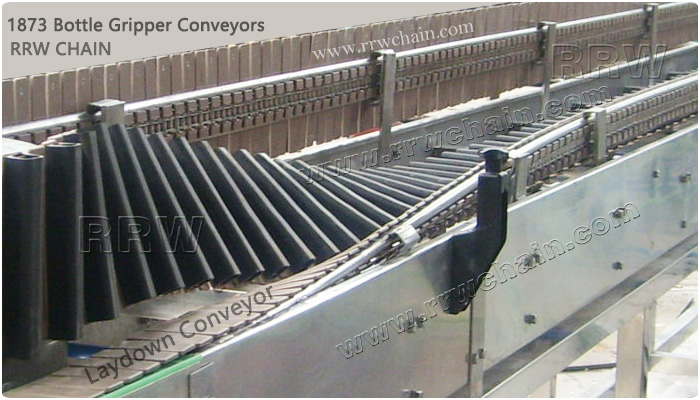

1873 Bottle Sterilizing Laydown Conveyor Gripper Chain Conveyors, PET Bottle Inverted Sterilizer

1873 Inverted Rubber Gripper Chain Lay down Conveyor, PET Bottle Jug Sterilizer Conveyor
1873 Bottle Sterilizing Laydown Conveyor Gripper Chain Conveyors
1873 Bottle Sterilizing Laydown Conveyor Gripper Chain Conveyors, 1873 Inverted Gripper Chain Lay down Conveyor, 1873 D Gripper Chains, 1873-G4 Gripper Chains, for More Detailed Specs. Information, Please Refer to.: 1873 D Gripper Chains

1873 D Gripper Chains with Rubber Top Steel Roller Base Chain

Material: POM Acetal Brown Plate, Rubber Closed Gripper Black / White, Carbon / Stainless Steel Roller Base Chain
Application: Side flexing gripper conveyor for PET bottle, Side grip elevators and lowerators, inline bottle inverter, rinsers
Max Speed: 80m/min lubricated, 50m/min dry
Max Length: 30m (Carbon Steel), 24m (Stainless Steel)
Packaging: Roller Chain length 1.524 m = 80 pitch = 5 ft
One Top Plate through Two Pieces Base Steel Rollers
Snap-on Rubber Grip Closed 1873 D Gripper Chains

1873 D Gripper Chains

1873 D Gripper Chains Rubber Snap-on Chains for Bottle Converter

Carbon Steel Base Roller Chains ANSI 60 12A, Stainless Steel Base Roller Chains ANSI 60 12A, Pitch 3/4" 19.05 Single Strand Roller Base Chains, One Plastic Top Plate Snap-on through Two Pieces Rollers (i.e. 40 Hinges Plate with 80 Pitches Rollers for 5 ft Length)
D style gripper rubbers inserts are available in black or white NBR, EPDM, Neoprene...

Chain Code CS Chain Code SS Width(mm) Rubber(mm) Weight(kg/m)
1873 D-K325 1873SS D-K325 82.6 80 2.9
1873 D-K600 1873SS D-K600 152.4 152 4.2
1873 D-K750 1873SS D-K750 190.5 186 4.60

* CS - Carbon Steel Roller Base Chain, SS - Stainless Steel Roller Base Chain
* 1873 D Style Gripper Chains supplied with molded rubber inserts, suitable for vertical conveyors of cans and bottles or radius conveyor, Beverage Applications, Bottle Conveying
* Other series gripper retainers on steel or stainless steel base chain & plastic base plate:
1873 Tab Gripper Chain, 1873 D Style Gripper Chain, 1873 SideGrip Chain with Finger Jaw Gripper, 1873 G4 Gripper Chain, 1873 GS Gripper Chain, 1873 GV Gripper Chain

1875 Snap-on Closed Gripper Chains

Material: POM Acetal White Plate, Grey Rubber Closed Gripper, Side flexing Teeth Base Chain
Application: Side Flexing conveying lines for PET bottles, elevators and lowerators, 1875 D Snap-on Gripper Chains.
Max Speed: 80m/min lubricated, 50m/min dry
Max Length: 30m (Carbon Steel), 24m (Stainless Steel)
Packing: 1.524m (One Plate through 2 Pitch Bases)

1875 Closed Gripper Chains

1875 Closed Gripper Chains

Chain Code CS Width(mm) Rubber(mm) Sideflex Rad. Weight(kg/m)
1875 D-K325 83 74.5 120 2.3

* 1875 D Snap-on Chains Closed Gripper Chains
