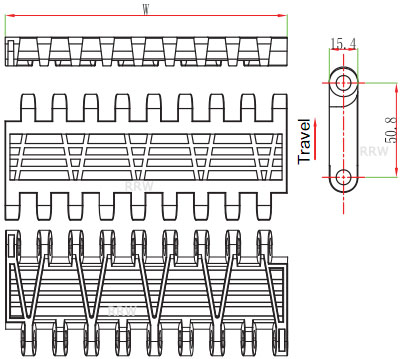

A-1 OPB Modular Belts Meshed Top 4V 23%
Material: Polypropylene PP or POM Acetal Belt, POM / PP Pin Rod
Application: Food Meat Poultry, Fruit Vegetable, Blanchers, Pasteurizers, Cooling Lines, Water Drainage Bottle Washing, Accumulating Tables, Elevators and Incline Conveyors
Pitch: 2.0 Inch 50.8 mm; Work Temp.: -40°C to 98°C
Load: 21590N/M for POM Belt, 8800N/M for PP Belt
Open Area: 23%; Weight: 9.8 Kg/M2(POM), 6.9Kg/M2 (PP)
Packaging: Roll in Request (Color in White / Blue)
Open Surface Meshed Top Plastic OPB Modular Belts
A-1 OPB 4V 23%
Standard Width: W(mm)=152.4*N (6", 12", 18", 24", 30", 36", and 42")
| W (mm) | 152.4 | 304.8 | 457.2 | 609.6 | 914.4 |
|---|---|---|---|---|---|
| W (mm) | 1066.8 | 1219.2 | 1371.6 | 1524 | 152.4N |
Non-Standard Width Customized for OPB Modular Belts: W(mm)=152.4*N+16.9*n
Sprockets Please See: OPB Modular Belts Sprockets

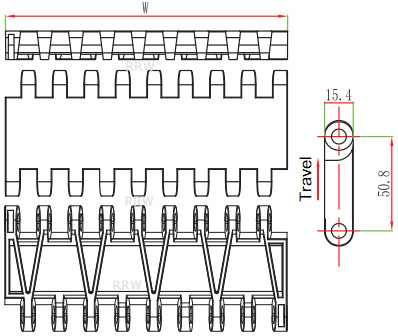

A-2 Series OPB Modular Belts Flat Top
Material: Polypropylene PP or POM Acetal Belt, POM / PP Pin Rod
Application: Food Meat Poultry, Fruit Vegetable, Blanchers, Pasteurizers, Cooling Lines, Water Drainage Bottle Washing, Accumulation Tables, Elevators and Incline Conveyors
Load: 21590N/M for POM Belt, 8800N/M for PP Belt
Weight: 10 Kg/M2 (POM), 7.3Kg/M2 (PP); Work Temp.: -40°C to 98°C
Packing: Roll in Request (Color in Blue / White)

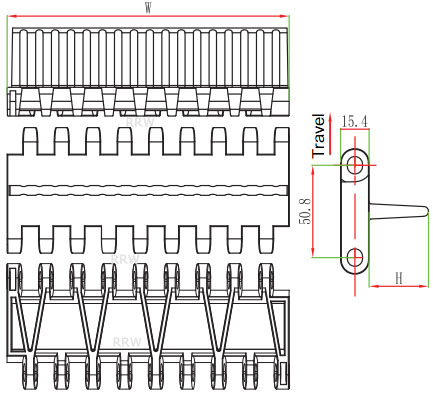

A-3 Series OPB Belt Flights
Material: Polypropylene PP or POM Acetal Belt, POM / PP Pin Rod
Application: Food Meat Poultry, Fruit Vegetable, Blanchers, Pasteurizers, Cooling Lines, Water Drainage Bottle Washing, Accumulation Tables, Elevators and Incline Conveyors
Load: 21590N/M for POM Belt, 8800N/M for PP Belt
Flight Height: 32, 50, 76, 100 Work Temp.: -40°C to 98°C
A-1+A-3 Belt With Flights and Side Guard
A-1-X OPB 4V Fine Meshed

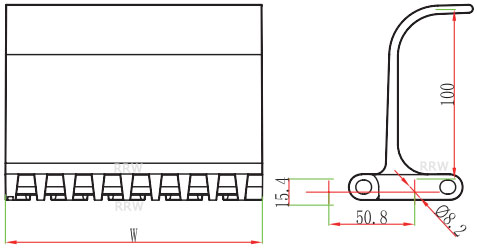

A-3 Hook Scoops
Accessories such as Sprockets, Sidewall Cleats, Flights, Scoops are all available on request. The OPB belts have been applied in industrial field use, and proved to be reliable and durable.
