FTM 1060 Chain Curve Tracks 1050 Chains
Material: Polyethylene UHMW-PE Black / Green
Main Application: Conveyor Chain Curve Tracks Guides
Angle: α = 15º ~ 90º
Chain Type: FT 1050 Side-flex chain, FTM 1060 heavy load flat top chain-belts
Packing: 2 Pcs/Set
FT 1060 Flat Top Chain Curve Tracks 1050 Chains
Heavy Duty Chain Curve Tracks 1050 Sideflex Chains

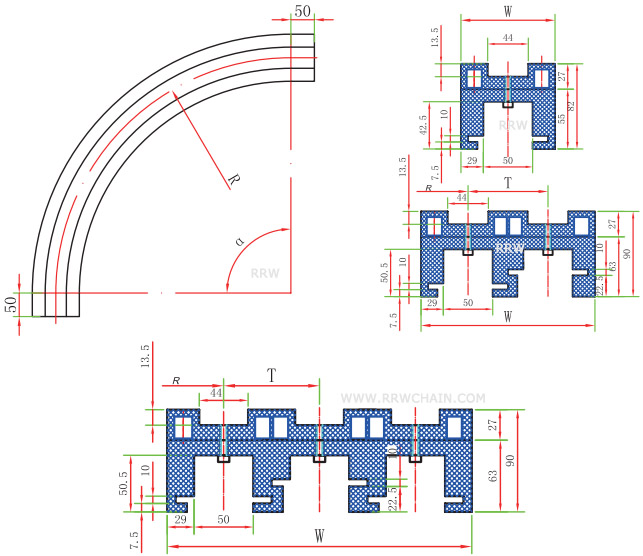

Curve Corner Tracks for 1050 Flat Top Magnetflex Chains, Corner Tracks for Flat Top 1060 side-flexing Chains, heavy duty chains, magnetic machined profiles retain the chains in a mechanical way, with optimal material in UHMWPE - Ultra High Molecular Weight Polyethylene, lower friction and longer guide wearlife
Packaging: The corner tracks are supplied complete with carry and return sections (2 Pieces/Set), Straight tracks are supplied as single profile
Flexible Finger Teeth Chain Corner Tracks

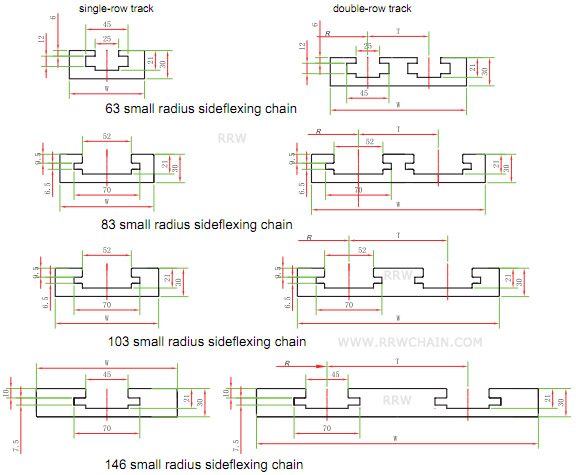

Curve Corner Tracks for Side-flex Teeth Chain width 63, 83, 103, 146, lower friction and longer guide wearlife
The track system should be considered in Slat Top Chains. This is especially important on the return side of the conveyor as this requires different methods of support
The Curve Corner Tracks are suitable for side-flexing running chains, optional single track or double tracks
