Snap-on Chain Curve Tracks 1873 Chains
Material: Polyethylene UHMW-PE Black / Green
Main Application: Conveyor Chain Curve Tracks Guides
Angle: α = 15º ~ 90º
Chain Type: Snap-on 1873-K325, 1873-K450, 1873-750 Chains
Packing: 2 Pcs/Set
Side-flex Chain Curve Tracks 1873 Chains
Side-flex Snap On Chain Curve Tracks 1873 Chains
Curve Corner Tracks for 1873 Snap On Chains, machined profiles retain the chains in a mechanical way, with optimal material in UHMWPE - Ultra High Molecular Weight Polyethylene, lower friction and longer guide wearlife
Packaging: The corner tracks are supplied complete with carry and return sections (2 Pieces/Set), Straight tracks are supplied as single profile

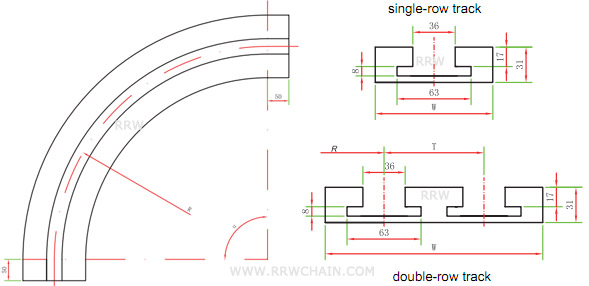

1873 Snap On Side-flexing Chains Corner Tracks
The track system should be considered in plate Top Chains. This is especially important on the return side of the conveyor as this requires different methods of support
The Curve Corner Tracks are suitable for side-flexing running chains, optional single track or double tracks
