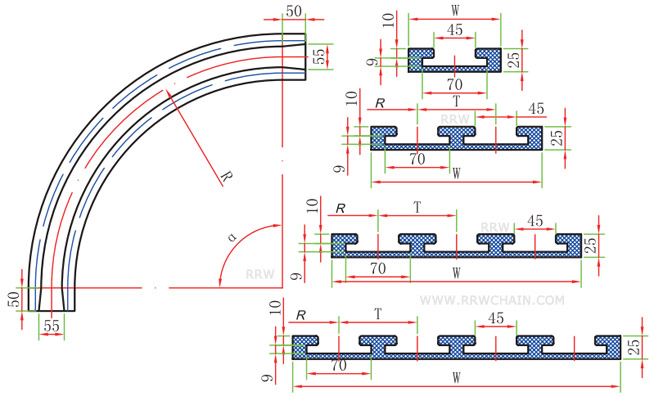

Chain Curve Tracks 880TAB Chains
Material: Polyethylene UHMW-PE Black / Green
Main Application: Conveyor Chain Curve Tracks Guides
Angle: α = 15º ~ 90º
Chain Type: 880TAB-K325, 880TAB-K450, SS 881 TAB-K325, SS 881 TAB-K450; Straight and Curve Tracks Match Width
Packing: 2 Pcs/Set
Side-flex Chain Curve Tracks 880TAB Chains
Slat Top Chain Curve Tracks 880TAB Chains
Curve Corner Tracks for 880 TAB Chains, TAB machined profiles retain the chains in a mechanical way, with optimal material in UHMWPE - Ultra High Molecular Weight Polyethylene, lower friction and longer guide wearlife
Packaging: The corner tracks are supplied complete with carry and return sections (2 Pieces/Set), Straight tracks are supplied as single profile

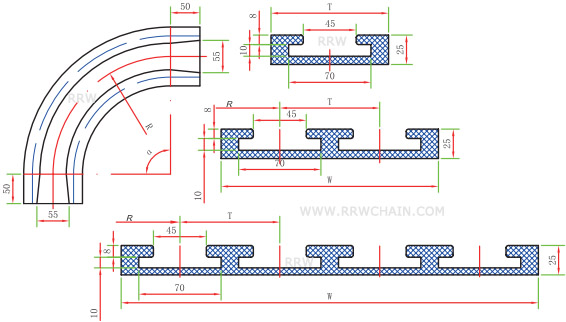

Chain Corner Tracks for 880TAB-RT Chains
Material: Polyethylene UHMW-PE Black / Green
Main Application: Conveyor Chain Curves Tracks Guides
Angle: α = 15º ~ 90º
Chain Type: 880TAB-RT-K325, 880 TAB BO-K325,880TAB-RT-K450 Small Radius Chains
Packing: 2 Pcs/Set
880 TAB BO-K325 Chain Corner Tracks
880TAB Slat Top Side-flex Chain Corner Tracks
The track system should be considered in Slat Top Chains composed of tabbed and non-tabbed belts and chains. This is especially important on the return side of the conveyor as this requires different methods of support
880 TAB Curve Corner Tracks are suitable for 880TAB Chains, optional single track or double tracks
