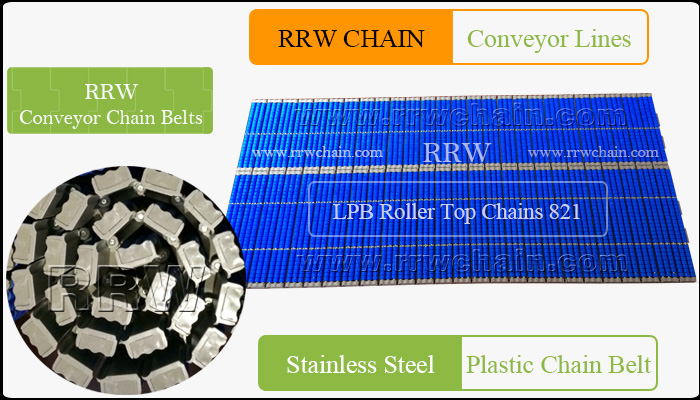

LBP 821 K750 K1000 K1200 Roller Top Chains Straight Running
Material: POM Acetal (LF Brown Low Friction Chain, Rollers Blue), Stainless Steel Pin Rod
Applications: Beverage Packaging, Case or Crate Products Accumulation Damage Reduction Conveyor, Shrink Wrapped PET Conveying
* LBP 821 K750 K1000 K1200 Roller Top Chains are slat chains with small rollers on top for low-pressure case or crate accumulation, offering low coefficient of friction, improving product stability and lessens the opportunity for packaging damage
| Chain Code | Width W(mm) | Roller Width(mm) | Backflex Rad. | Weight(kg/m) |
|---|---|---|---|---|
| LBP 821-K750 | 190.5 | 174.5 | 255 | 3.45 |
| LBP 821-K1000 | 254.0 | 238.0 | 255 | 4.80 |
| LBP 821-K1200 | 304.8 | 288.8 | 255 | 5.65 |
| LBP882TAB-K375 | 95.2 | 79.0 | 101 | 3.7 |
| LBP882TAB-K750 | 190.5 | 174.0 | 101 | 5.2 |
| LBP882TAB-K1000 | 254.0 | 238.0 | 101 | 7.2 |
| LBP882TAB-K1200 | 304.8 | 289.0 | 101 | 8.5 |
LBP 882 Roller Top Side-flex Radius Chains
Material: POM Acetal (LF Brown Low Friction, Rollers Blue), Stainless Steel Pin Rod
Main Application: Beverage Packaging, Products accumulation damage reduction, Shrink wrapped PET conveying
Max Conveyor Length: 12m, Work Temp.: -40°C to 90°C
Packing: 3.048m, 10ft or 80 links/box, 26pcs/meter
LBP 882 TAB Roller Top Chains Radius
Material: POM Acetal (LF Brown Low Friction, Rollers Blue), Stainless Steel Pin Rod
Main Application: Beverage Packaging, Products accumulation damage reduction, Shrink wrapped PET conveying
Max Conveyor Length: 12m, Work Temp.: -40°C to 90°C
Packing: 3.048m, 10ft or 80 links/box, 26pcs/meter
| Chain Code | Width W(mm) | Roller Width(mm) | Backflex Rad. | Weight(kg/m) |
|---|---|---|---|---|
| LBP882TAB-K750 | 190.5 | 174.0 | 101 | 5.2 |
| LBP882TAB-K1000 | 254.0 | 238.0 | 101 | 7.2 |
| LBP882TAB-K1200 | 304.8 | 289.0 | 101 | 8.5 |
For more specifications, please refer to: LBP Roller Top Chains
