Plastic Table Top Chains Straight Running Hinge Conveyor Chains

Thermo Plastic Table Top Chains: Slat Top Chains, Flat Top Chains, Slat Band Chains, Roller Top Chains, Straight Running and Side Flexing Chains.
Wide Applications in Bottling, Crate Carton Filling, Packaging, Can Filling, Empty Keg Lines and Case Conveyors, Low Back Pressure LBP Chains for Products Accumulation.
Materials in POM Acetal (LF Brown Low Friction, AS Anti-static Black), Stainless Steel Pin Rod (PP Rod available), High Friction Inserts, Bevel Edges, with Tabs.

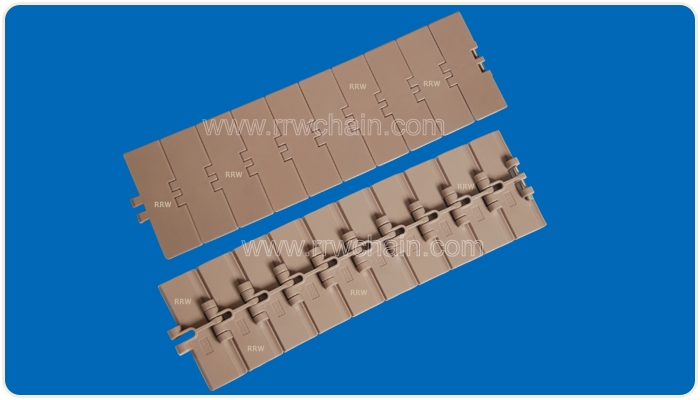

820 Plastic Table Top Chains Hinge Chains Conveyors

820 Series Single Hinge Straight Run Plastic Table Top Chains

- 820-K250 (2.5"), 820-K325 (3.25"), 820-K400 (4.0"), 820-K450 (4.5"), 820-K500 (5.0"), 820-K600 (6.0"), 820-K750 (7.5"); Plate Width 2.5 Inch 3.25 Inch 4.0 Inch 4.5 Inch 6.0 Inch

821 Series Double Hinge Straight Run Plastic Slat Top Chains

- 821-K750 (7.5"), 821-K1000 (10.0"), 821-K1200 (12.0"), Width 7.5 Inch 10.0 Inch 12.0 Inch
- Sprockets for Table Top Chains: Milling Machined (White), Plastic Injection (Black), Material in Nylon PA6, Well Match Durable Machined Split or Molded Split, Keyways Optional
Teeth No.: 19, 21, 23, 25 ; Bore Dia.: 20, 25, 30, 35, 40 mm; Pitch Dia.: Chain Belt Sprockets
