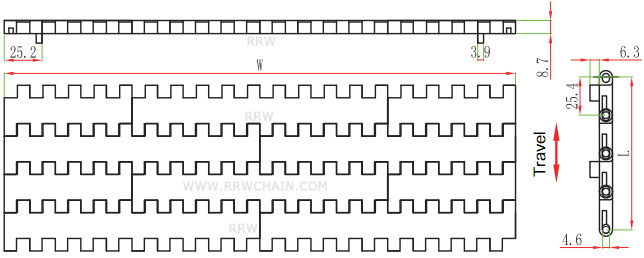

R-1000 Modular Belts 2540 (1.0", 25.4mm)

Material: PP Polypropylene or POM Acetal, PP/POM Pin Rod
Application: Food and Beverages, Bottling Accumulation,
Modular Conveyor Lines, Glass Bottle, PET Containers
Pitch: 1.0 Inch 25.4 mm; Weight: 7.5 Kg/M2
Load: 17280N/M for POM Belt, 9610N/M for PP Belt
Open Area: 0; Work Temp.: -40°C to 98°C
Packing: Roll in Request (Color in White / Blue)

• R-1000 Modular Belts 2540 with positrack for accurate guiding of the belt in the conveyor
• Flat top closed surface thickness 6.3 mm, maximum support to the conveyed products
• Conveyor Lengths : 3', 6', 7', 8', 9', 10', 15', 20' are common lengths with others customized
• Series 1000 Modular Belts Flat Top are suitable for application for glass PET bottle conveyor

Standard Width for R-1000 Modular Belts: W(mm)=85*N

Standard Width (Inch) : 3.3", 6.7", 10.0", 13.4", 16.7", 23.4", 26.8", 30.1", 33.5" ...
Other widths are available in 85mm increments
Sprockets Please See: R-1000 Modular Belts 2540 Sprockets

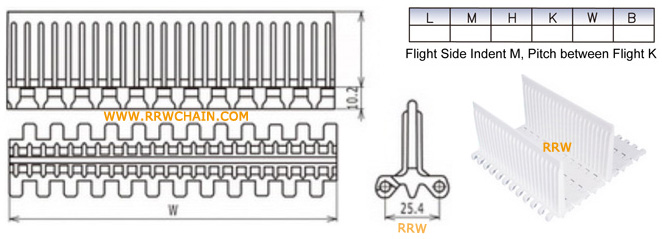

Modular Belts 2540 Flat Top or Flush Grid with Flights

Material: PP Polypropylene or POM Acetal, PP/POM Pin Rod
Application: Food Beverages, Bottling Accumulation, Modular Conveyor Lines, Meat, Fruits, Sea Food Conveyor
Pitch: 1.0 Inch 25.4 mm; Weight: 6.5 Kg/M2
Load: 15000N/M for POM Belt, 9610N/M for PP Belt
Open Area: 0~30%; Work Temp.: 0°C to 98°C
Flight Height: 30 / 50 / 76 / 100mm
