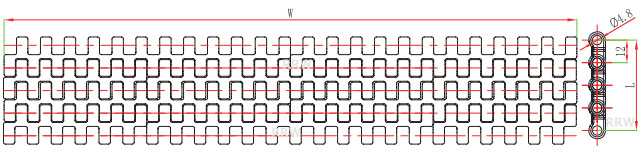

R-1400 Modular Belts 1505 7120 (0.5")
Material: POM Acetal, PP Polypropylene / POM Pin Rod
Main Application: Food Beverage Bottling Transportation,
Glass PET Containers, Packaging Machinery Conveyor
Pitch: 0.5 Inch 12.0 mm; Weight: 6.2Kg/M2
Load: 10500N/M for POM Belt
Open Area: 0%; Work Temp.: -40°C to 90°C
Packing: Roll in Request (Color in Coffee / Blue)
• 1505 Closed Flat Top, 1506 Flush Grid 7120 Modular Belts
• 1506 Modular Belts 7120 Pitch 0.5" (12.7mm)
• Conveyor Lengths : 3', 6', 7', 8', 9', 10',15', 20' are common lengths with others customized.
• 1506 Flush Grid Modular Belts are suitable for water and airflow, Glass PET Containers, Can Handling
Standard Width for 1505 Modular Belts 7120: W(mm)=76.2*N
| W (mm) | 76.2 | 152.4 | 228.6 | 304.8 | 381.0 | 457.2 |
|---|---|---|---|---|---|---|
| W (mm) | 533.4 | 609.6 | 685.8 | 762.0 | 1066.8 | 76.2N |
Standard Width (Inch) : 3", 6", 9", 12", 18", 24", 30", 36", 42" and 45"
Other widths are available begin at 3" with 1/2" increments
Non-Standard Width Customized for R-1400 Modular Belts: W(mm)=76.2*N+12.7*n
Sprockets Please See: R-1400 Modular Belts 1505 7120 Sprockets

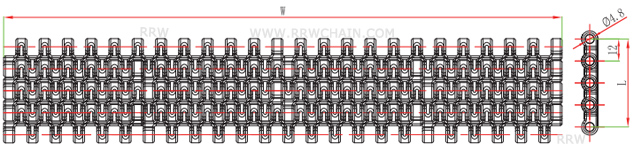

Modular Belts 1506 Flush Grid 7120 (0.5")
Material: POM Acetal, PP Polypropylene / POM Pin Rod
Main Application: Food Beverage Bottling Transportation,
Glass PET Containers, Packaging Machinery Conveyor
Pitch: 0.5 Inch 12.0 mm; Weight: 6.2Kg/M2
Load: 10500N/M for POM Belt
Open Area: 14%; Work Temp.: -40°C to 90°C
Packing: Roll in Request (Color in Coffee / Blue)
