R-1500 LBP Modular Belt 1005 Roller Top

Material: POM Acetal Belt, PP Rod, Stainless Steel Roller Pin
Application: Food and Beverages, Shrink-wrapped Packaging,
Carton Cardboard Containers Modular Conveyor Lines
Pitch: 1.0 Inch 25.4 mm; Weight: 31 Kg/M2
Load: 28000N/M for POM Belt
Open Area: 0%; Work Temp.: -40°C to 90°C
Packing: Roll in Request (Color in Coffee / Blue)

• Low Backline Pressure Heavy Duty LBP Modular Belt 1005 Roller Top 1 Inch
• Conveyor Lengths : 3', 6', 7', 8', 9', 10',15', 20' are common lengths with others customized.
• Series 1005 Modular Belts Roller Top are suitable for Shrink-wrapped Packaging

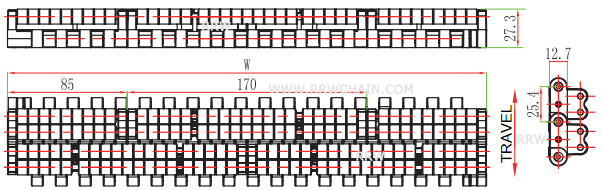

Standard Width for R-1500 Modular Belts 1005: W(mm)=255+85*N

Standard Width (mm) : Starting at 255 mm with increments of 85 mm
Sprockets Please See: R-1500 Modular Belts 1005 Sprockets
