R-2546 Side Flex Spiral Modular Belts SNB

Material: POM Acetal, PP Polypropylene / PA6 Pin Rod
Application: Poultry Meat, Fruits, Vegetables, Beverages,
Bread Baking, Spiral Coolers, Radius Conveyors in J-curves
Pitch: 1.0 Inch 25.4 mm; Weight: 6.8 Kg/M2
Load: 15000N/M for POM Belt; Work Temp.: -40°C to 98°C
Open Area: 55%; 2.3 Inner Width Radius
Packing: Roll in Request (Color in White / Blue)

• R-2546 Side Flex Spiral Modular Belts SNB 25.4mm 1.0 Inch with Steel Reinforcement Links
• Side Modules Center Modules for S and J-curves radius conveyor
• Conveyor Lengths : 3', 6', 7', 8', 9', 10', 15', 20' are common lengths with others customized
• Modular Belts SNB C with curve guiding make it suitable for any curve applications, Flush Grid open area for optimum water flow

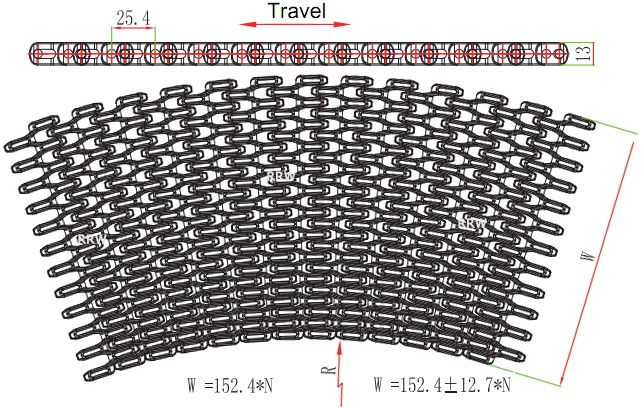

Standard Width for R-2546 Modular Belts SNB: W(mm)=152.4*N

Non-Standard Width (Inch) : Begin at 152.4mm with 1/2 Inch 12.7mm increments
Sprockets Please See: R-2546 Modular Belts SNB Sprockets

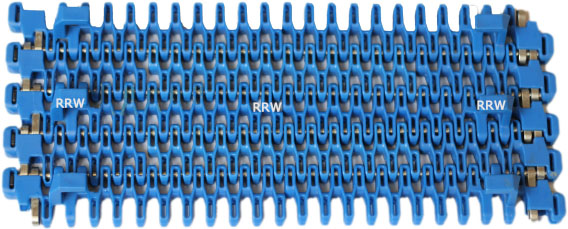

SNB Spiral Modular Belts Reinforcement Link Steel Pins Tabs

Material: POM Acetal Belt, Stainless Steel Pin Rod
Application: Poultry Meat, Fruits, Vegetables, Beverages, Bread Baking, Side-flex Spiral Radius Conveyors in J-curves
Pitch: 1.0 Inch 25.4 mm; Weight: 13 Kg/M2
Load: 24000N/M for POM Belt; Work Temp.: -40°C to 98°C
Open Area: 55%; 2.3 Inner Width Radius
Packing: Roll in Request (Color in White / Blue)

Standard Width for R-2546 Modular Belts SNB Reinforcement Links: W(mm)=310+152.4*N

Non-Standard Width (Inch) : Begin at 310mm with 1/2 Inch 12.7mm increments
