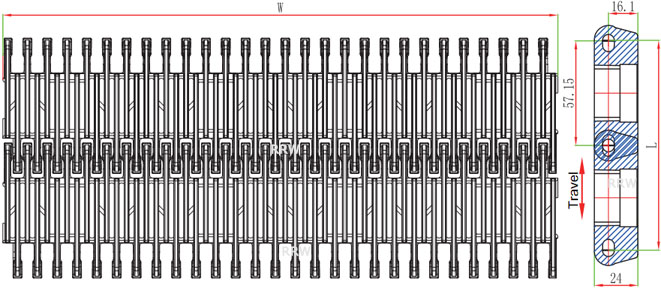

Raised Rib Modular Belts 4809 Pasteurizer
Material: PP Polypropylene, PP / Steel Reinforced Pin Rod
Application: Accumulation Tables, Pasteurizers, Cans and
Bottles In-feed, Glass Pasteurizing Belt, Bottle Accumulating
Pitch: 2.25 Inch 57.15 mm; Weight: 12.5Kg/M2
Load: 23400N/M; Work Temp.: 1°C to 98°C
Open Area: 34% for optimum water flow
Packing: Roll in Request (Color in Grey)
• R-500 Raised Top 4809 Modular Belts thickness 24 mm
• Conveyor Lengths : 4.5', 9', 18', 36', 72' are common conveyor lengths with others customized
• Modular Belts 4809 are suitable for application in heavy weight products, large Accumulation Tables, Pasteurizers, Coolers and Warmers, cans and PET bottles Accumulating
Standard Width for 4809 Modular Belts: W(mm)=152.4*N
| W (mm) | 152.4 | 304.8 | 609.6 | 914.4 | 1219.2 | 1524.0 |
|---|---|---|---|---|---|---|
| W (mm) | 1828.8 | 2133.6 | 2438.4 | 2743.2 | 3048.0 | 152.4N |
Standard Width (Inch) : 6", 12", 24", 48", 60", 72", 84" (start at 6" with increments of 6")
Sprockets Please See: R-500 Modular Belts 4809 Sprockets
Strengthen Raised Rib Modular Belts 4809
Material: PP Polypropylene, Steel Connecting Pin Rod
Application: Accumulation Tables, Pasteurizers, Cans and
Bottles In-feed, Glass Pasteurizing Belt, Bottle Accumulating
Pitch: 2.25 Inch 57.15 mm; Weight: 13.5Kg/M2
Load: 23400N/M; Work Temp.: 1°C to 98°C
Open Area: 34% for optimum water flow
Packing: Roll in Request (Color in Grey)
• R-500 Strengthen Raised Rib Modular Belts 4809 thickness 24 mm
• Conveyor Lengths : 4.5', 9', 18', 36', 72' are common conveyor lengths with others customized
• 4809 Reinforced Rib Modular Belts are suitable for application in large Accumulation Tables, Pasteurizers, Coolers and Warmers, Cans and Bottles In-feed, Glass Pasteurizing Belt, Bottle Accumulating
