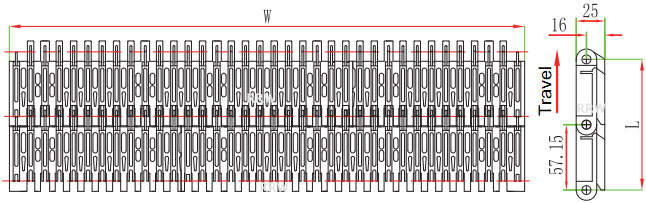

Raised Rib Modular Belts 5997 Pasteurizer
Material: PP Polypropylene, PP / Steel Reinforced Pin Rod
Application: Accumulation Tables, Pasteurizers, Cans and
Bottles In-feed, Glass Pasteurizing Belt, Bottle Accumulating
Pitch: 2.25 Inch 57.15 mm; Weight: 9.7Kg/M2
Load: 23400N/M; Work Temp.: 1°C to 98°C
Open Area: 38% for optimum water flow
Packing: Roll in Request (Color in Grey)
• R-600 Raised Top 5997 Pasteurizing Modular Belts thickness 25 mm
• Conveyor Lengths : 4.5', 9', 18', 36', 72' are common lengths with others customized
• Modular Belts 5997 are suitable for application in heavy weight products, large Accumulation Tables, Pasteurizers, Coolers and Warmers, cans and PET bottles Accumulating
Standard Width for 5997 Modular Belts: W(mm)=304.8+152.4*N
| W (mm) | 457.2 | 609.6 | 762.0 | 914.4 | 1066.8 | 1219.2 |
|---|---|---|---|---|---|---|
| W (mm) | 1371.6 | 1524.0 | 1676.4 | 1828.8 | 304.8+152.4N | ... |
Standard Width (Inch) : 18", 24", 30", 36", 42", 48", 54", 60", 66", 72" (start at 12" with increments of 6")
Sprockets Please See: R-600 Modular Belts 5997 Sprockets
Reinforced Pasteurization Modular Belts 5997
Material: PP Polypropylene, Steel Connecting Pin Rod
Application: Accumulation Tables, Pasteurizers, Cans and
Bottles In-feed, Glass Pasteurizing Belt, Bottle Accumulating
Pitch: 2.25 Inch 57.15 mm; Weight: 10.7Kg/M2
Load: 23400N/M; Work Temp.: 1°C to 98°C
Open Area: 38% for optimum water flow
Packing: Roll in Request (Color in Grey)
• R-600 Strengthen Raised Rib Modular Belts 5997 thickness 25 mm
• Conveyor Lengths : 4.5', 9', 18', 36', 72' are common lengths with others customized
• 5997 Reinforced Rib Modular Belts are suitable for application in large Accumulation Tables, Pasteurizers, Coolers and Warmers, Cans and Bottles In-feed, Glass Pasteurizing Belt, Bottle Accumulating
