Modular Side Flexing Belt 2400 Flush Grid
Material: POM Acetal Belt, PP Polypropylene / POM Pin Rod
Application: Food Beverage Radius Side Flexing Conveyor,
Case Handling, Packaging inclined and declined Conveyors
Pitch: 1.0 Inch 25.4 mm; Weight: 7.6Kg/M2
Load: 17280N/M for POM Belt, Work Temp.: -40°C to 90°C
Open Area: 42%; 2.5 Inner Radius
Packing: Roll in Request (Color in Coffee / White)
• R-800 Modular Side Flexing Belts 2400 with Hold Down Tabs
• Pitch 1.0" (25.4mm) guiding system for curve radius conveyor
• Conveyor Lengths : 3', 6', 7', 8', 9', 10',15', 20' are common lengths with others customized
• Modular Belts 2400 with curve guiding make it suitable for any curve applications, Flush Grid open area for optimum water flow

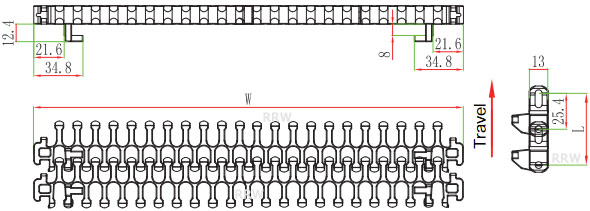

Standard Width for 2400 Modular Belts: W(mm)=228.5+12.7*N
| W (mm) | 228.5 | 355.5 | 482.5 | 609.5 | 736.5 | 863.5 |
|---|---|---|---|---|---|---|
| W (mm) | 990.5 | 1117.5 | 1244.5 | 1371.5 | 228.5+12.7N | ... |
Standard Width (Inch) : 9", 14", 19", 24", 29", 34", 39", 44", 49" and 54"
Other widths are available begin at 9" with 1/2" increments
Sprockets Please See: R-800 Modular Belts 2400 Sprockets
