1873 Steel Tab Grip Chains

Material: Carbon Steel Plate, Rubber Top Gripper, Carbon / Stainless Steel ANSI 60 Roller Base Chain 12A
Application: Side flexing gripper conveyor for PET bottles, elevating and bottle inverter turnkey conveyor lines
Max Speed: 80m/min lubricated, 50m/min dry
Max Length: 30m (Carbon Steel), 24m (Stainless Steel)
Packing: 1.524m=80pitch=5ft (1 Plate through 2 Pitches)

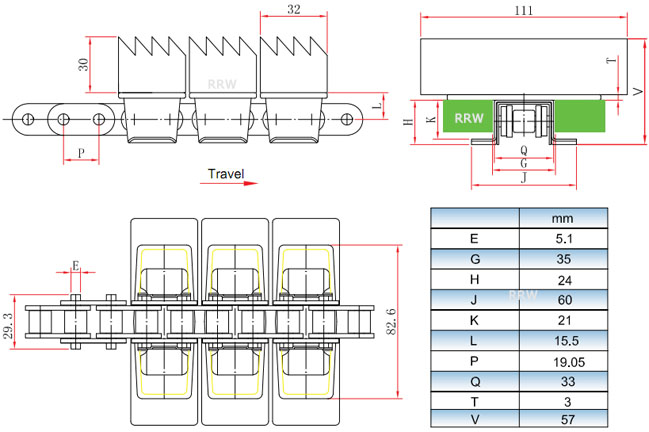

1873 Steel Tab Grip Chains with Steel Roller Base Chain

1873 Grip Chains with Steel Tab Guide and Roller Base Chain

- 1873 Gripper Chains supplied with steel Tab guide shoes and molded rubber inserts, single strand roller base chain ANSI 60 12A, used for vertical conveyors of cans, bottles or side-flexing conveyor, inline bottle inverters

1873 Steel TAB Grip Chains with Steel Roller Base Chain

Package in 80 pitch/5 ft (1.524 m) or 160 pitch/10 ft (3.048 m) length strands, top plate 40 hinges or 80 hinges.
Base Roller Chains in CS Carbon Steel #60 12A, SS ANSI #60 12A Stainless Steel
Chain Pitch 3/4" 19.05 Single Strand Roller Base Chains, Chain width 3.25” (82,5mm) and 4.50” (114,3mm)
1873 Steel TAB Gripper Chains supplied with molded rubber inserts, suitable for vertical conveyors of cans and bottles or radius conveyor, Beverage Applications, Bottle Conveying
Other series gripper retainers on stainless steel base chain:
1873 Tab Gripper Chain, 1873 D Style Gripper Chain, 1873 Side Grip Chain with Finger Jaw Gripper, 1873 G4 Gripper Chain, 1873 GV Gripper Chain
Gripper rubbers are available in black or white NBR, EPDM, Neoprene
