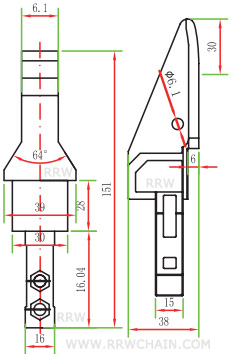

Polyamide Chain Inlet Guide Shoe Center 915
| Code | Item Name | Material | Color | Size |
|---|---|---|---|---|
| 915 | Chain Guide Shoe | Reinforced PA | Black | 3m/Pc |
Chain Inlet Guide Shoe for Chain Guides Rail 914, combination with 914 chain guide rails
Polyamide PA black, plastic profile is protruding from metal profile of 28mm
In Table Top conveyors, chain inlet guide shoes shall be used near the idlers, in MatTop conveyors can be used near the sprockets

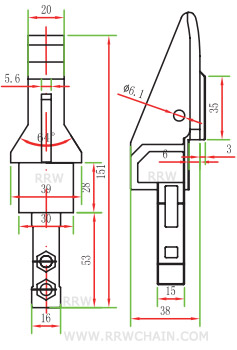

Chain Inlet Outlet Guide Shoe Polyamide 917
| Code | Item Name | Material | Color | Size |
|---|---|---|---|---|
| 917 | Chain Guide Shoe | Reinforced PA | Black | 3m/Pc |
Chain Inlet Guide Shoe for Chain Guides Rail 916, combination with 916 chain guide rails
Polyamide PA black, plastic profile is protruding from metal profile of 28mm
In Table Top conveyors, chain inlet guide shoes shall be used near the idlers, in MatTop conveyors can be used near the sprockets
Chain Guide Profiles: Chain inlet guide shoe (centre), Side transfer guide shoe, Conveyor chain outlet guide shoes
Wear strips are vital for chain’s wear life, UHMWPE (Ultra High Molecular Weight Polyethylene) wear-strips are recommended - Outstanding Low Friction Low Wear UHMWPE, protection of the chain carrying way and chain from excessive wear, reduction of friction thus reduction in drive power, reduction in plate wear
