Guide Rail Brackets Large Bracket B04
| Item Code | Bracket Name | Bracket Material | Bore Dia. | Components |
|---|---|---|---|---|
| B04 | Large Bracket | Reinforced PA FV | ø 12 | Knob+Eyebolt |
Guide Rail Brackets for Linear and Angular Positioning
Material: bracket and knob in reinforced polyamide PA FV (black).
Hexagonal insert bushing in nickel plated brass.
Eyebolt in stainless steel.

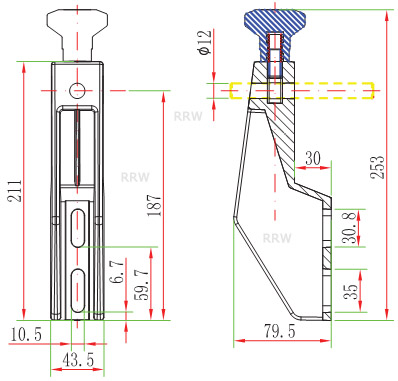

Guide Rail Brackets Extra Large Bracket B04B
| Item Code | Bracket Name | Bracket Material | Bore Dia. | Components |
|---|---|---|---|---|
| B04B | Extra Large Bracket | Reinforced PA FV | ø 12 | Knob |
Material: bracket and knob in reinforced polyamide PA FV (black).
Hexagonal insert bushing in nickel plated brass.
Guide Rail Brackets Middle Size Bracket B00
| Item Code | Bracket Name | Bracket Material | Bore Dia. | Components |
|---|---|---|---|---|
| B00 | Middle Size Bracket | Reinforced PA FV | ø 12 | Knob |
Material: bracket and knob in reinforced polyamide PA FV (black).
Hexagonal insert bushing in nickel plated brass.
* Guide Rail Brackets Side Brackets are used in conjunction with adjusting rods, cross blocks and other guide rail holding components. The adjusting rod is mounted vertically via a bolt and washer.
Various attachments such as cross blocks, other adjusting rods, and adjusting rods with clamp for guide rails can be added.
Additional sizes and other models available upon request.
