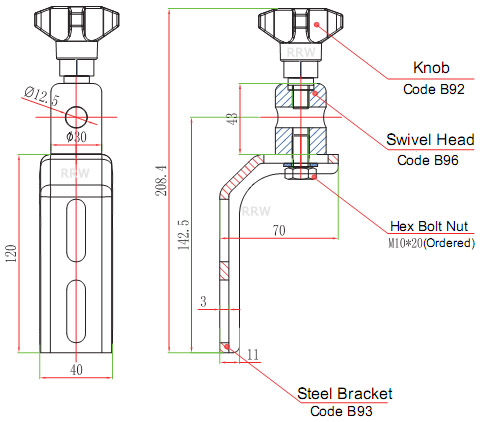

Guide Rail Brackets Steel Side Bracket B93
| Item Code | Bracket Name | Bracket Material | Bore Dia. | Components |
|---|---|---|---|---|
| B93 | Steel Bracket | Stainless Steel | ø 12.5 | Knob+Swivel |
Guide Rail Brackets for Linear and Angular Positioning
Bracket Size: 70x120
Material: bracket and swivel head in stainless steel
Knob in reinforced polyamide PA FV (black), hexagonal insert bushing in nickel plated brass
Hexagonal bolt and nut M10*20 will be ordered on request

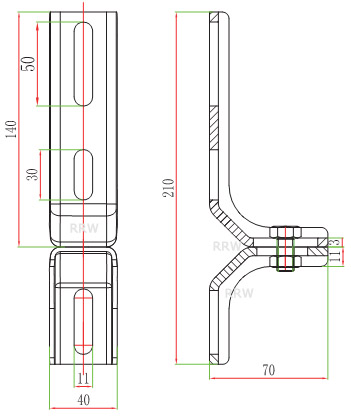

Guide Rail Brackets Steel Side Bracket B94
| Item Code | Bracket Name | Bracket Material | Bore Dia. | Components |
|---|---|---|---|---|
| B94 | Steel Bracket | Stainless Steel | ø 12.5 | Knob+Swivel |
Bracket Size: 70x140
Material: bracket and swivel head in stainless steel
Knob in reinforced polyamide PA FV (black), hexagonal insert bushing in nickel plated brass
Hexagonal bolt and nut M10*20 will be ordered on request

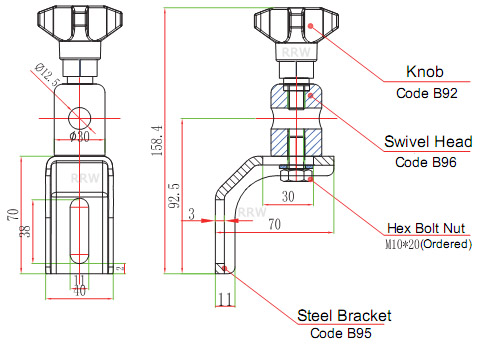

Guide Rail Brackets Steel Side Bracket B95
| Item Code | Bracket Name | Bracket Material | Bore Dia. | Components |
|---|---|---|---|---|
| B95 | Steel Bracket | Stainless Steel | ø 12.5 | Knob+Swivel |
Bracket Size: 70x70
Material: bracket and swivel head in stainless steel
Knob in reinforced polyamide PA FV (black), hexagonal insert bushing in nickel plated brass
Hexagonal bolt and nut M10*20 will be ordered on request
* Guide Rail Brackets Steel Side Brackets are used in conjunction with adjusting rods, swivel head, cross blocks and other guide rail holding components. The adjusting rod is mounted vertically via a bolt and washer.
Various attachments such as cross blocks, other adjusting rods, and adjusting rods with clamp for guide rails can be added.
Additional sizes and other models available upon request.
