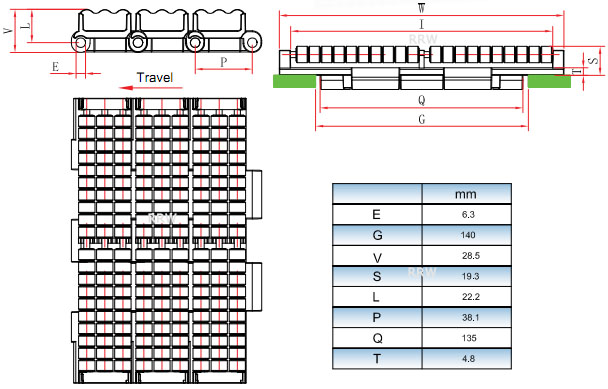

LBP Roller Top Chains LBP 821 Straight Run

Material: POM Acetal (LF Brown Low Friction, Rollers Blue), Stainless Steel Pin Rod
Main Application: Beverage Packaging, Case or Crate Accumulation Damage Reduction Conveyor, Shrink Wrapped PET Bottle Conveying, Accumulation Table
Max Conveyor Length: 12m, Work Temp.: -40°C to 90°C
Packing: 3.048m, 10ft or 80 links/box, 26pcs/meter

LBP Roller Top Chains

* Low Back Pressure Chains LBP are slat chains with small rollers on top for low-pressure case or crate accumulation, offering low coefficient of friction, improving product stability and lessens the opportunity for packaging damage.

LBP Roller Top Chains

Chain Code Width W(mm) Roller Width(mm) Backflex Rad. Weight(kg/m)
LBP 821-K750 190.5 174.5 255 5.45
LBP 821-K1000 254.0 238.0 255 7.20
LBP 821-K1200 304.8 288.8 255 8.50
LBP882TAB-K375 95.2 79.0 101 3.7
LBP882TAB-K750 190.5 174.0 101 5.2
LBP882TAB-K1000 254.0 238.0 101 7.2
LBP882TAB-K1200 304.8 289.0 101 8.5

LBP Roller Top 882 Side-flexing Radius Chains

Material: POM Acetal (LF Brown Low Friction, Rollers Blue), Stainless Steel Pin Rod
Main Application: Beverage Packaging, Products accumulation damage reduction, Shrink wrapped PET conveying
Max Conveyor Length: 12m, Work Temp.: -40°C to 90°C
Packing: 3.048m, 10ft or 80 links/box, 26pcs/meter

LBP 882-TAB

LBP 882-TAB

Chain Code Width W(mm) Roller Width(mm) Backflex Rad. Weight(kg/m)
LBP882TAB-K375 95.2 79.0 101 3.7

LBP 882 TAB Roller Top Chains Radius

Material: POM Acetal (LF Brown Low Friction, Rollers Blue), Stainless Steel Pin Rod
Main Application: Beverage Packaging, Products accumulation damage reduction, Shrink wrapped PET conveying
Max Conveyor Length: 12m, Work Temp.: -40°C to 90°C
Packing: 3.048m, 10ft or 80 links/box, 26pcs/meter

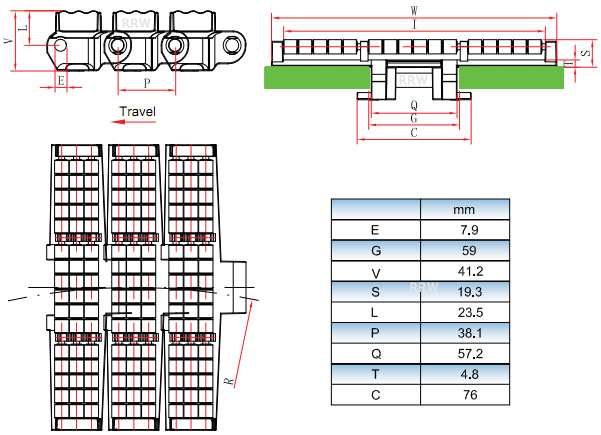

LBP 882 PRR TAB

LBP 882 PRR TAB

Chain Code Width W(mm) Roller Width(mm) Backflex Rad. Weight(kg/m)
LBP882TAB-K750 190.5 174.0 101 5.2
LBP882TAB-K1000 254.0 238.0 101 7.2
LBP882TAB-K1200 304.8 289.0 101 8.5
