S 900 Dynamic Transfer Belts

Material: PP or POM Acetal Belt, POM/PP Pin Rod
Application: Canning Bottling Transportation, Container
Transfer Modular Conveyor Lines, Packaging Processing
Pitch: 1.07 Inch 27.20 mm; Weight: 5.9 Kg/M2
Load: 17280N/M for POM Belt, 8080N/M for PP Belt
Open Area: 38%, 5.9Kg/M2; Work Temp.: +1°C to 98°C
Packaging: Roll in Request (Color in Blue / White / Coffee)
Live Transfer S 900 Dynamic Transfer Belts

Flush Grid S 900 Dynamic Transfer Belts Features

• The Dynamic Transfer System Modular Belt thickness 17 mm.
• S 900 Live Transfer Belts Assembled by Flush Grid with Integrated Transfer Plate.
• Conveyor Lengths : 4', 5', 6', 7', 8', 9', 10',15', 20' are common conveyor lengths with other lengths customized.
• Series 900 Belts with flights, Sidewalls, Friction Rubber Top are also available on request.

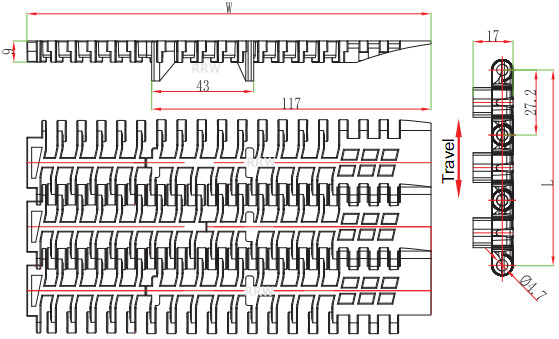

Standard Width for S 900 Dynamic Transfer Modular Belts: W(mm)=170+50.8*N

Non-Standard Width Customized for S 900 Dynamic Transfer Modular Belts: W(mm)=170*N+8.466*n
Sprockets Please See: S 900 Series Modular Belts Sprockets
