S 900 Flat Top Modular Belts
Material: PP or POM Acetal Belt, POM/PP Pin Rod
Application: Raw Meat and Poultry Conveying, Container,
Plastic Modular Conveyor Lines, Packaging Processing
Pitch: 1.07 Inch 27.20 mm; Weight: 7.7 Kg/M2
Load: 17280N/M for POM Belt, 8080N/M for PP Belt
Open Area: Null; Work Temp.: +1°C to 98°C
Packaging: Roll in Request (Color in White / Coffee / Blue)
Superior Performance S 900 Flat Top Modular Belts

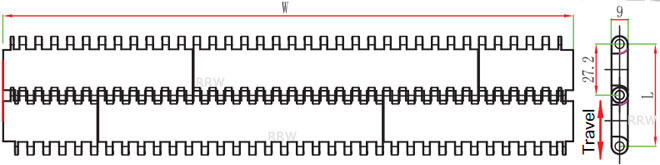

S 900 Flat Top Modular Belts Y-003 FT Sold Top
• 900 FT thick surface for long service life, thickness 9 mm.
• S 900 Y-003 FT Flat Top Belt can be compatible with international series 900 Belts.
• Conveyor Lengths : 4', 5', 6', 7', 8', 9', 10',15', 20' are common conveyor lengths with other lengths customized.
• Series 900 Belt with flights, Sidewalls, Friction Rubber Top are also available on request.
Standard Width for S 900 Y-003 Flat Top Modular Belts: W(mm)=152.4*N
| W (mm) | 152.4 | 304.8 | 457.2 | 609.6 | 914.4 |
|---|---|---|---|---|---|
| W (mm) | 1066.8 | 1219.2 | 1371.6 | 1524 | 152.4N |
Standard Width (Inch) : 6", 12", 18", 24", 30", 36", and 42"
Other widths are available in 1" increments
Non-Standard Width for S 900 Y-003 Flat Top Modular Belts: W(mm)=152.4*N+8.4*n
Sprockets Please See: S 900 Series Modular Belts Sprockets

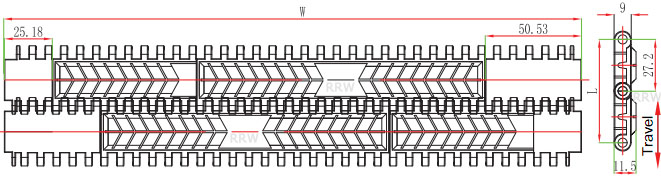

S900 Y-003 Supergrip Rubber Friction Top
Material: PP + Synthetic Rubber, PP/POM Pin Rod
Main Application: Raw Meat and Poultry Transportation,
Plastic Modular Conveyor Lines, Packaging Processing
Pitch: 1.07 Inch 27.20 mm; Weight: 7.9 Kg/M2
Load: 8080N/M for PP Belt
Packaging: Roll in Request (Blue Belt and Black Rubber)
