S 900 Raised Rib Modular Belts
Material: PP or POM Acetal Belt, POM / PP Pin Rod available
Application: Raw Meat and Poultry Conveying, Container,
Plastic Modular Conveyor Lines, Packaging Processing
Pitch: 1.07 Inch 27.20 mm; Weight: 7.9 Kg/M2
Load: 17280N/M for POM Belt, 8080N/M for PP Belt
Open Area: 38%, 7.9Kg/M2; Work Temp.: +1°C to 98°C
Packaging: Roll in Request
High Strength S 900 Raised Rib Modular Belts
S 900 Raised Rib Modular Belts RR Series Y-002
• Raised Ribs belt with extend thickness 3/16 inch (4.7 mm) above basic module, fully flush edges.
• S 900 Y-002 Raised Ribs RR Belt can be used with Finger Transfer Plates eliminating product tippage and hang-ups.
• Conveyor Lengths : 4', 5', 6', 7', 8', 9', 10',15', 20' are common conveyor lengths with other lengths customized.
• Series 900 Belts with flights, Sidewalls, Friction Rubber Top are also available on request.

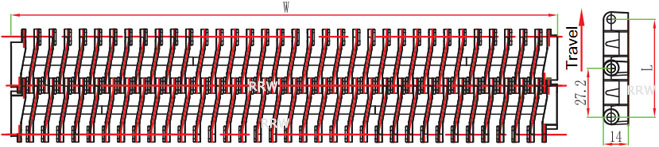

Standard Width for S 900 Y-002 Raised Rib Modular Belts: W(mm)=152.4*N
| W (mm) | 152.4 | 304.8 | 457.2 | 609.6 | 914.4 |
|---|---|---|---|---|---|
| W (mm) | 1066.8 | 1219.2 | 1371.6 | 1524 | 152.4N |
Standard Width (Inch) : 6", 12", 18", 24", 30", 36", and 42"
Other widths are available in 1" increments
Non-Standard Width Customized for S 900 Y-002 Raised Rib Modular Belts: W(mm)=152.4*N+8.4*n
Sprockets Please See: S 900 Series Modular Belts Sprockets
