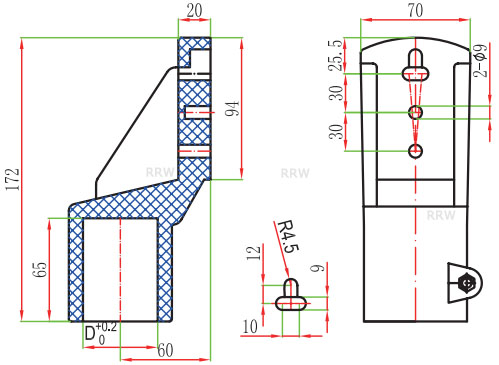

B38 Frame Support Side Mounting Brackets
| Item Code | Item Name | Material | Bore Dia. |
|---|---|---|---|
| B38 | Side Mounting Top Brackets | Reinforced PA FV | ø48.3-63.5 |
Frame Support Side Mounting Top Brackets A, Side Mount Post Cap
Material: Side Mounting Brackets in reinforced polyamide PA FV (black)
Bore Diameter ø 48,3-ø 50,8-ø 60,3

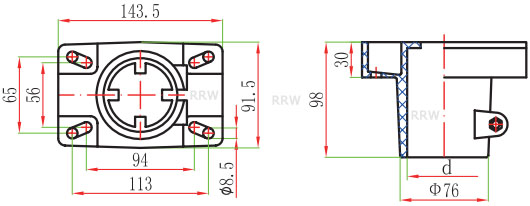

B32 Frame Bearing Head for Tubes
| Item Code | Item Name | Material | Bore Dia. |
|---|---|---|---|
| B32 | Frame Bearing Head | Reinforced PA FV | ø42-63.5 |
Frame Bearing Head for Tubes, Post Cap – Rectangle / Square
Material: Frame Bearing Head in reinforced polyamide PA FV (black)
Bore Diameter ø 48.3 ø 50.8 ø 60.3

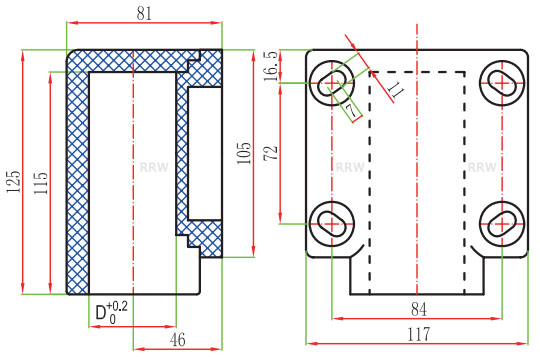

B39 Frame Support Side Mounting Brackets
| Item Code | Item Name | Material | Bore Dia. |
|---|---|---|---|
| B39 | Side Mounting Brackets | Reinforced PA FV | ø48.3-63.5 |
Frame Support Side Mounting Top Brackets B, Side Mount Post Cap
Material: Side Mounting Top Brackets in reinforced polyamide PA FV (black)
Bore Diameter ø48,3-ø50,8-ø60,3
